Description of Emulsifying Homogenizing Pump:

Homogenization pump is a kind of pump which is mainly used for crushing, refining, emulsifying, homogenizing, conveying and other functions.

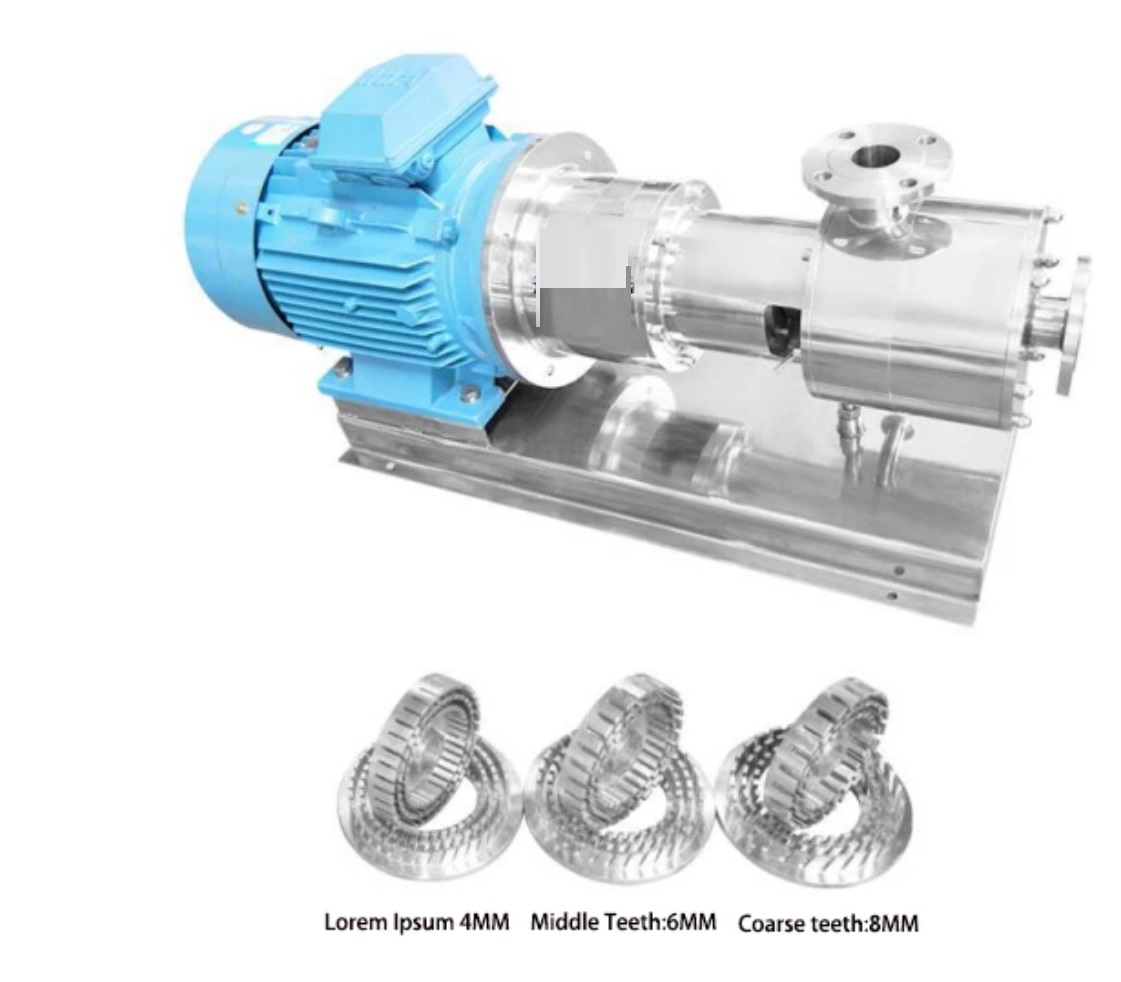

Emulsifying homogenizing pump that could be operated for continuous production and is composed of stator and rotor. The processed media will be operated through 6-10 layers stators and rotors and then be dispersed cut refined smashed, emulsified and mixed etc step by step. Compared with traditional manufacturing technique this pump is easier convenient and optimized which has improved production efficiency and media quality. It's mainly used in the industry of food, beverage pharmacy health protection fine chemistry.

There are mainly2 different structure homogenizer pumps

（Single stage homogenize and multistage emulsification homogenization pump

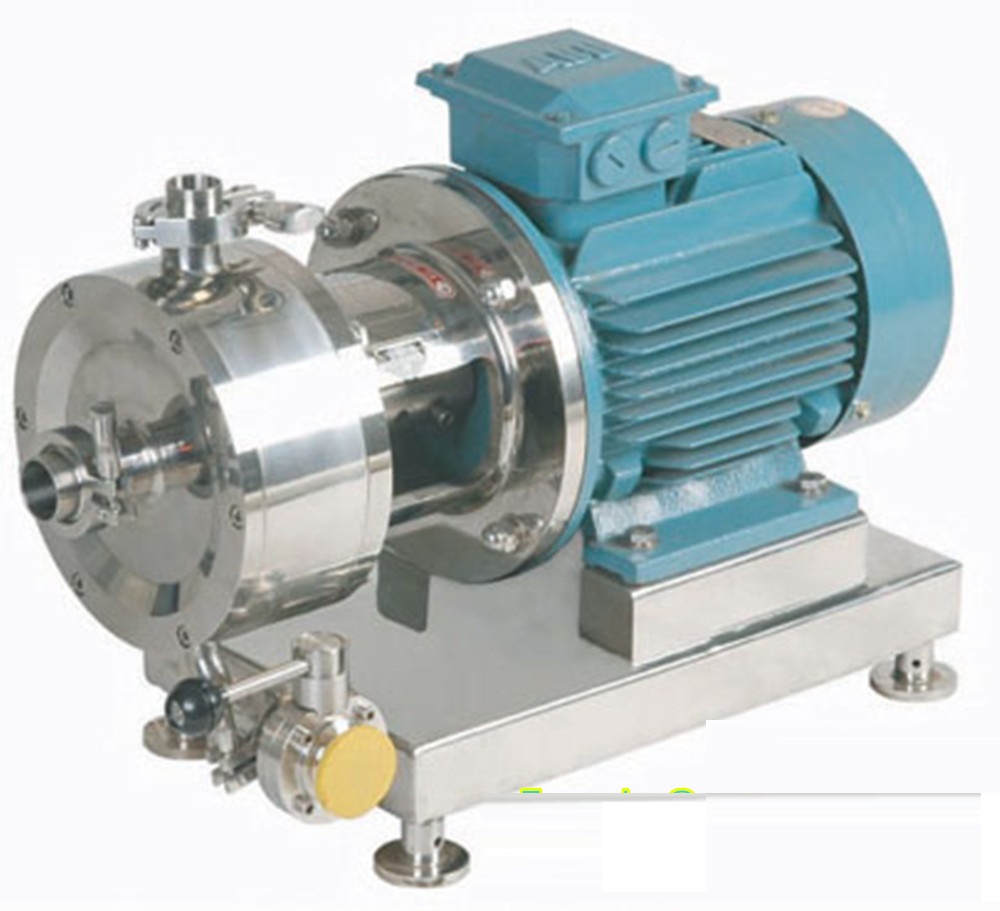

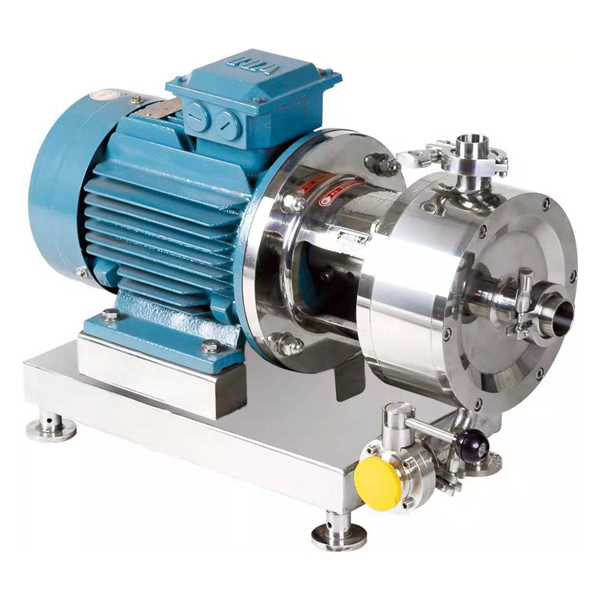

 1. Single stage emulsifying homogenizing pump

Technical specifications of single stage homogenization pump

Maximum flow rate Max Flow rate: 50m3/h
Maximum power Max power :55KW
Maximum temperature Max temperature: -20 ° C to 140 ° C
Material refinement Media refinement: ≤ 60 GRIT (≈ 300μm) ≤60 mesh (about 300μm)
Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single seal and double seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange

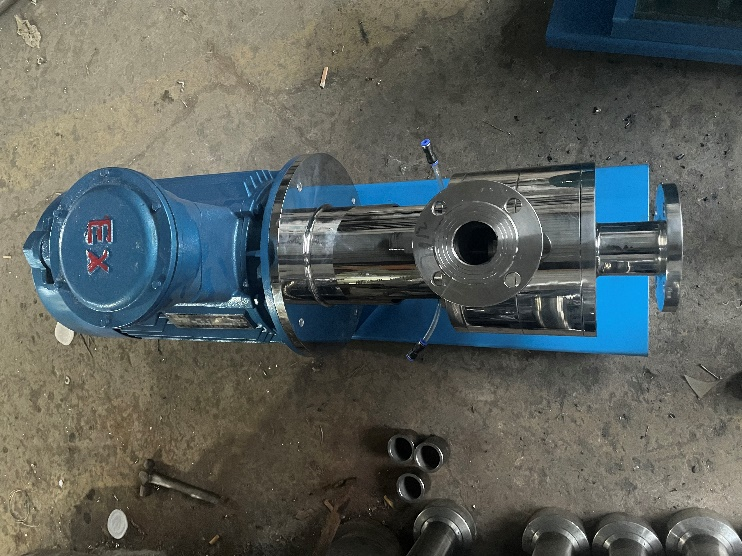

2.Two stage emulsifying homogenizing pump

3. Three stage homogenizing pumps

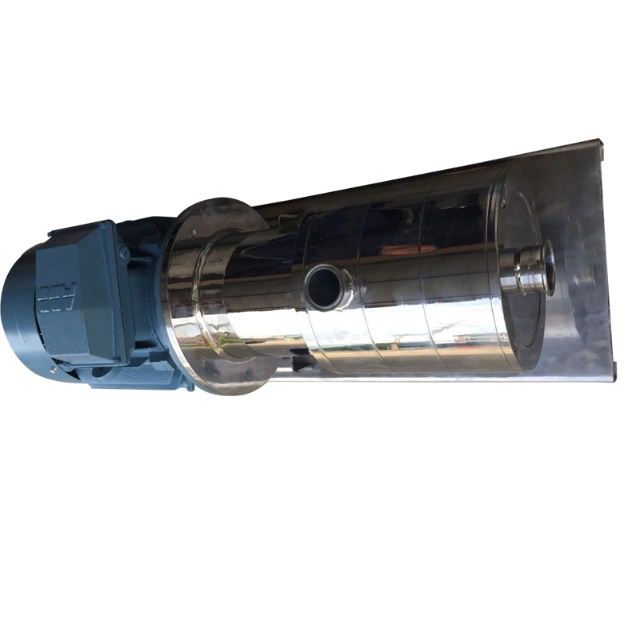

2stage homogenizing pump, 3stage emulsifying pump and other multistage homogenizer pump is an in-line continuous production emulsified homogenizing pump consisting of stator and rotor. The treated material will be dispersed, sheared, refined, crushed and emulsified step by step through total 12 layers of rotor and stator. Mixing, homogenizing, etc. Compared with the traditional production process, the pump is simpler, more convenient and optimized, it improve the production efficiency and quality of the material to be treated. Mainly used in various industrial fields such as food, beverage, pharmaceutical, health care, fine chemicals, coatings, pesticides, daily washing, photo paper, etc.

Technical specifications of multi stage homogenizing pump

Maximum flow rate Max Flow rate: 50m3/h
Maximum power Max power :55KW
Maximum temperature Max temperature: -20 ° C to 140 ° C
Material refinement Media refinement: ≤ 100 GRIT (≈ 200μm) ≤100 mesh (approx. 200μm)    Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single seal and double seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange
Certification: 3-A-02-10 (N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;
