Stainless Steel Jacket Kettles
Stainless steel jacket kettle/Cooking Pot large industry cooking pot with mixerJacket kettle HS code: 8479820090jacket kettle cooking pot Function: heating, cooling, cooking, mixing, even emulsifying liquid Industry large cooking pot stainless steel jacket kettle Additional function: cooling, mixing, pasteurizing Large Cooking Pot Application industrial: foodstuff , medicine, cosmetic, chemical, usage : cooking food, sauce like tomato sauce pasteurizing, sugar melting, . Mixer type: agitator, scrapper mixer, homogenizer mixerMixer speed: 18rpm, 36rpm, 48rpm to 2900rpm or customized14, Lids; with or without depending on customer required
Shanghai Youcan Beverage Machine Company Factory manufacture all kinds of industrial jacket kettle /50Litre to 1000Litre jacket kettle/large cooking pot double jackete pot

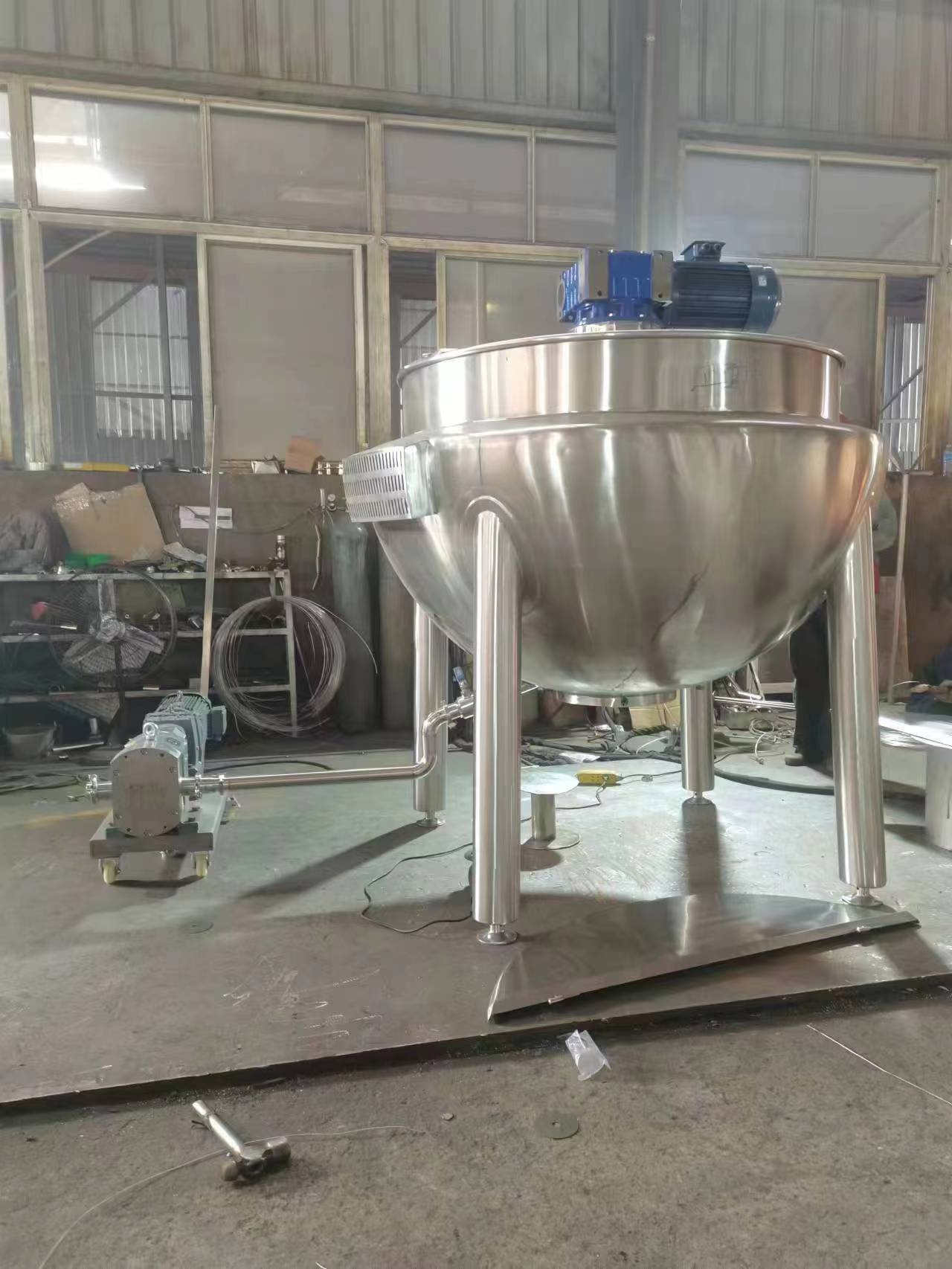

large stainless steel jacket kettle with mixer or no mixer ,

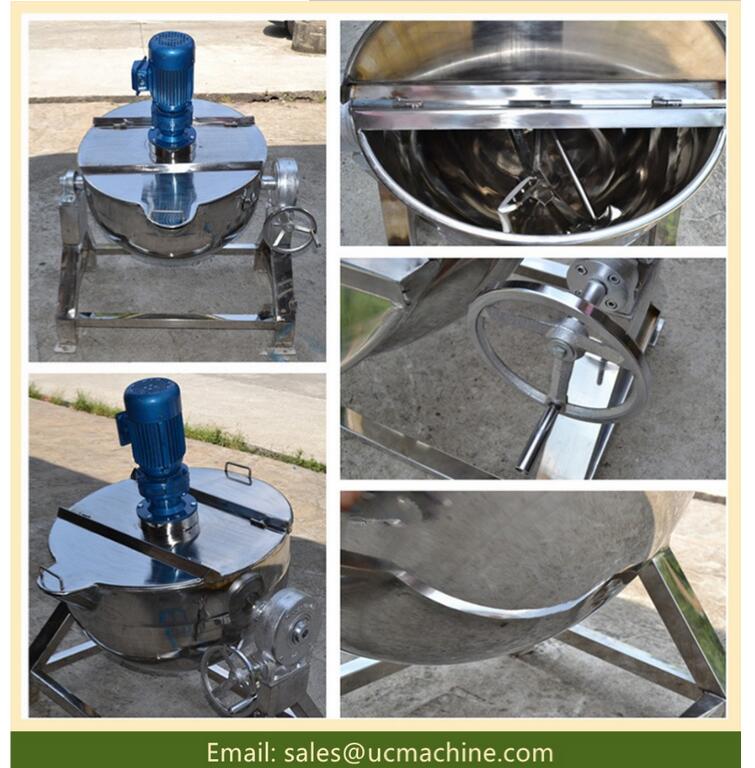

tiling jacket kettle
vertical stand jacket kettle
| Type Jacket Kettle | Ucan50 | Ucan100 | Ucan200 | Ucan300 | Ucan400 | Ucan500 | Ucan600 | Ucan1000 |
| Volume (L) Kgs | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 1000 |
| Working pressure (Mpa) | 0.09 |
| ||||||
| 0.30 |
| |||||||
| Evaporation (Kg/h) | 30 | 40 | 65 | 75 | 100 | 150 | 200 | 1000 |
| Heating area (m²) | 0.40 | 0.60 | 1.00 | 1.44 | 1.65 | 1.90 | 2.30 | 4.5 |
| Steam Energy consumption (Kg/h) | 33 | 44 | 72 | 110 | 136 | 165 | 190 | 300 |
| ID×Deep (cm) | 60*45 | 70*52 | 80*55 | 90*63 | 100*68 | 110*75 | 120*78 | 140*82 |
| Stirring speed (r/min) | 36, 48, 62 , 200, according to customer requirement |
| ||||||
| Mixer type | Scrapper mixer or agitator no wall scrapper |
| ||||||
| Moto power (Kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
| Structure | Fixed/Inclinable/Stir |
| ||||||
| Warm Tips: volume, working pressure, motor power, electricity structure can be customized according to customer's production capacity and specific requirements. .Jacket kettle type: vertical, tilting Pressure: normal pressure less than 1 bar Structure of kettle: inside shell touch liquid, outside shell Capacity/volume: 50Litre, 100Litres to 1000Litres advantage: heating quickly , control: halt automatic with electric control cabinet warranty: 2 years for main pot body, whole life technical service free Material: Sanitary SS3044/ SS316, food grade stainless steel Rated processing capacity: 50litres to 1000litres per batch Certificate: CE, ISO Spare parts: outlet valves will be supplied Motor: EX-Proof/Non-EX22. Factory : more than 20years liquid emulsifying effect: 24.application for : Viscous liquid and powder 25. more name: cooking pot, industrial cooking pot
| ||||||||
