Electric dispersion machine
High Speed Disperser , also known as agitator, it is a high speed equipment for mixing liquid and solids to dissolve, disperse and homogenize.The medium speed is stirred and dissolved, and the high speed is distributed evenly.Material under the action of high-speed rotating blade, sharp turn hard in the container, and touch attack and shear blade, the aggregate crushing to quickly spread, homogeneous mixture, accelerate the dissolution.
Material Viscosity: ≤50,000 cps
Production Capacity: 50-10,000L
|
|

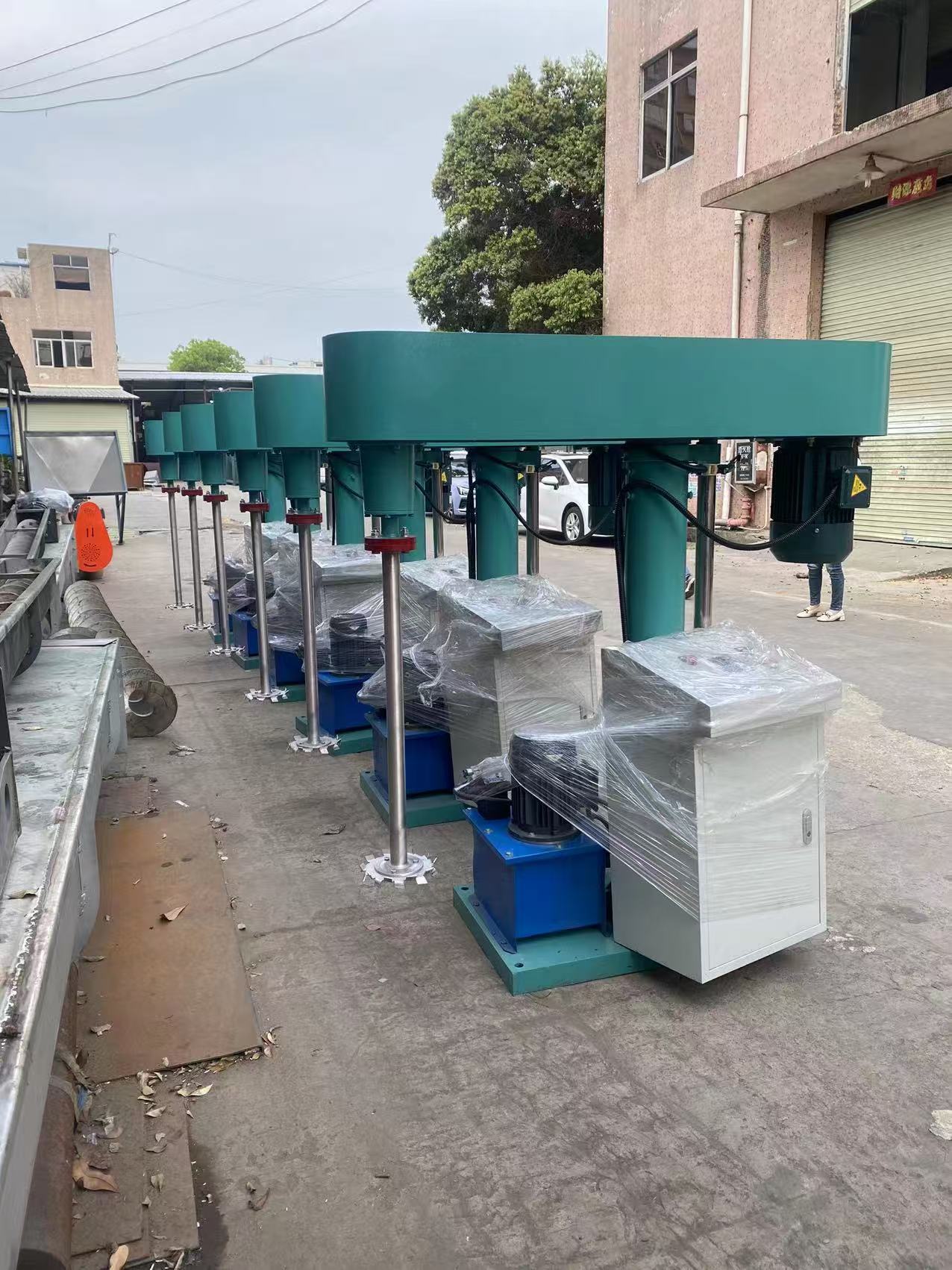

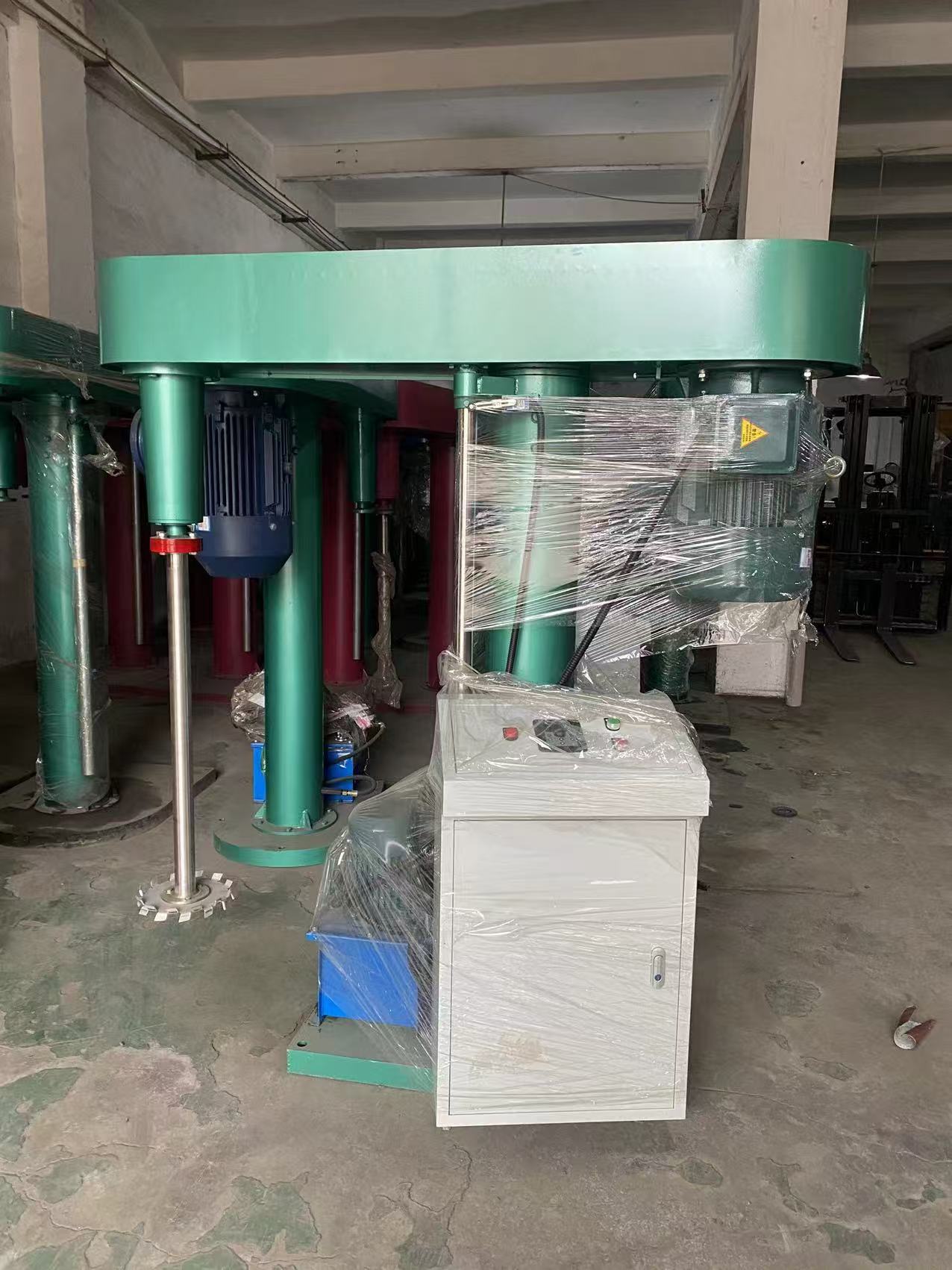

High Speed Disperser mixer with electric control and hydraulic lifting frame
| Type (Electric control and hydraulic lifting) | Power (Kw) | Voltage | Revolution (RPM) | Length （Mm） | Processing capacity （L/H） |
Material |
|
|
SS304/SS316 | |||||
| ED-90 | 1.5 | 380V/50Hz | 2900 | 430 | 5-50 | |
| ED -100 | 2.2 | 380V/50Hz | 2900 | 650 | 50-100 | |
| ED -120A | 3 | 380V/50Hz | 2900 | 750 | 100-200 | |
| ED -120 | 4 | 380V/50Hz | 2900 | 750 | 100-300 | |
| ED -140A | 5.5 | 380V/50Hz | 2900 | 850 | 200-600 | |
|
| ||||||
| HYD-140 | 7.5 | 380V/50Hz | 2900 | 900 | 200-800 | |
| HYD -160 | 11 | 380V/50Hz | 2900 | 1000 | 300-1000 | |
| HYD -170 | 15 | 380V/50Hz | 2900 | 1100 | 400-1200 | |
| HYD -180 | 18.5 | 380V/50Hz | 2900 | 1150 | 500-1500 | |
| HYD -200 | 22 | 380V/50Hz | 1170 | 1200 | 800-2000 | |
| HYD -220 | 30 | 380V/50Hz | 1170 | 1350 | 1000-3000 | |
| HYD -240 | 37 | 380V/50Hz | 1470 | 1400 | 1500-5000 | |
| HYD -270 | 55 | 380V/50Hz | 1470 | 1650 | 2000-8000 | |
How It Works

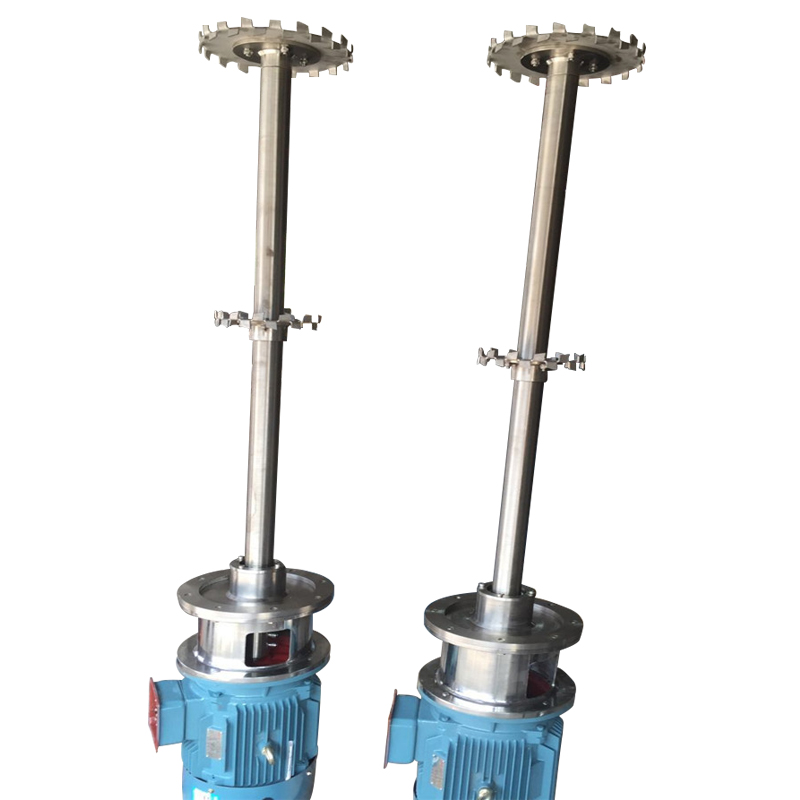

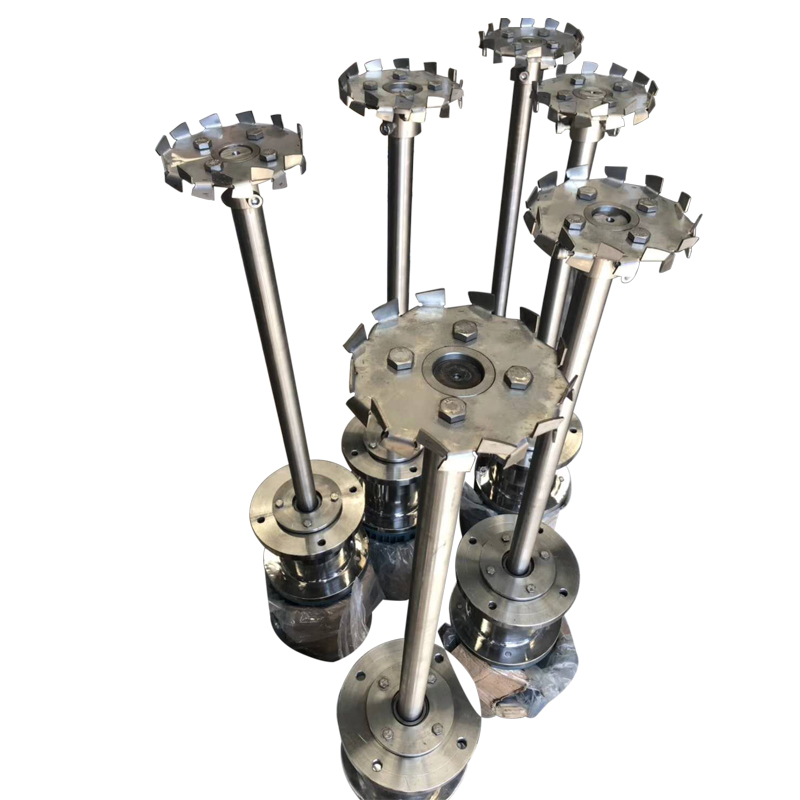

Through the high-speed rotation dispersing disc, the material will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
Product features
The vessel is fabricated from SS plates and is provided with 3 nos castor wheels, SS bottom discharge ball valve and towing handles. All SS parts are duly polished inside and outside.
1.Very high capacity.
2.Very high-degree vacuum and high pressure.
3.Frequency control for the mixing speed.
4.Easy to handle and control.
5.Sealed very well, which is very good for the quality of paint.
6.Stable performance and high efficiency.
7.Corrosion resisting, non-pollution,lower noise,long service life.
